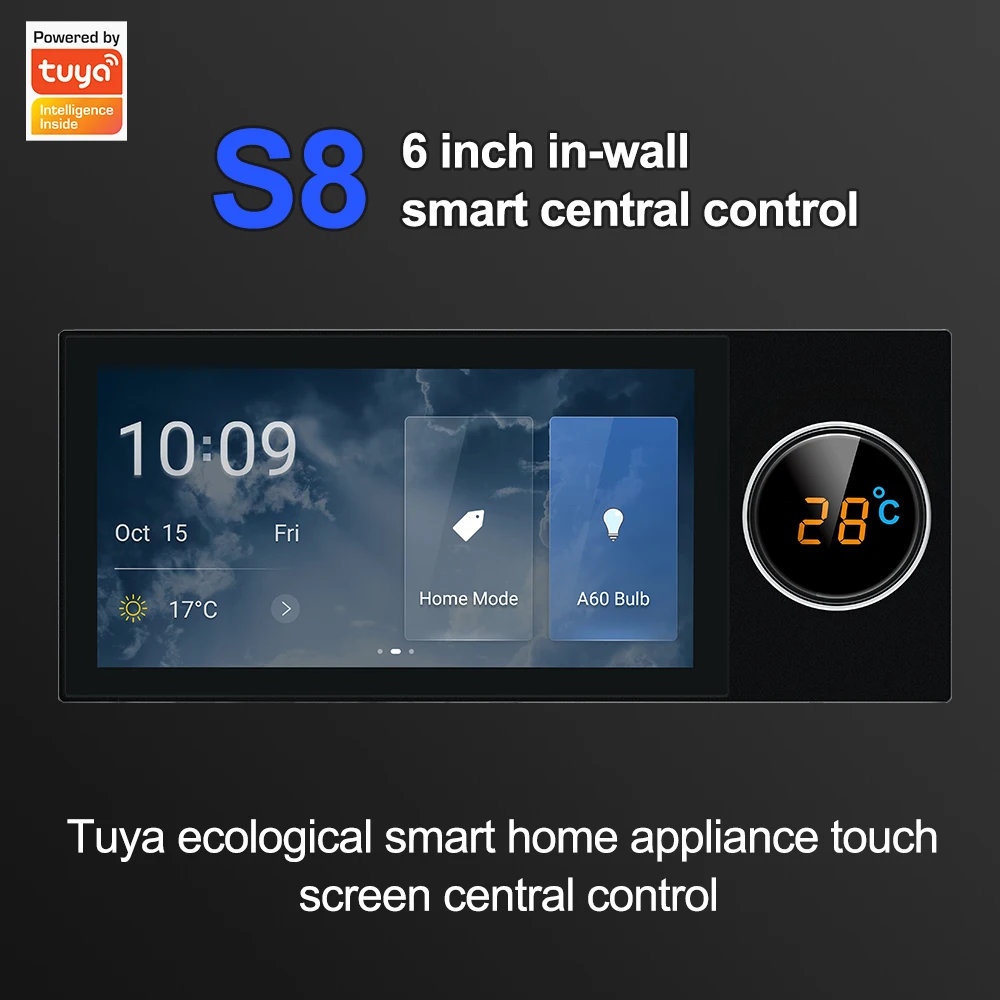

Product features and application scenarios:
* Wall-mounted concealed structure, simple installation mode, no need to transform the wall surface, any collocation.
* 6-inch HD LCD, G+F process five-point touch, four-array microphone noise reduction, light sensing, 1W two-channel speaker.
* Smart home interconnection, AI voice interaction, scenario mode, Zigbee gateway function, device automation, remote APP control.

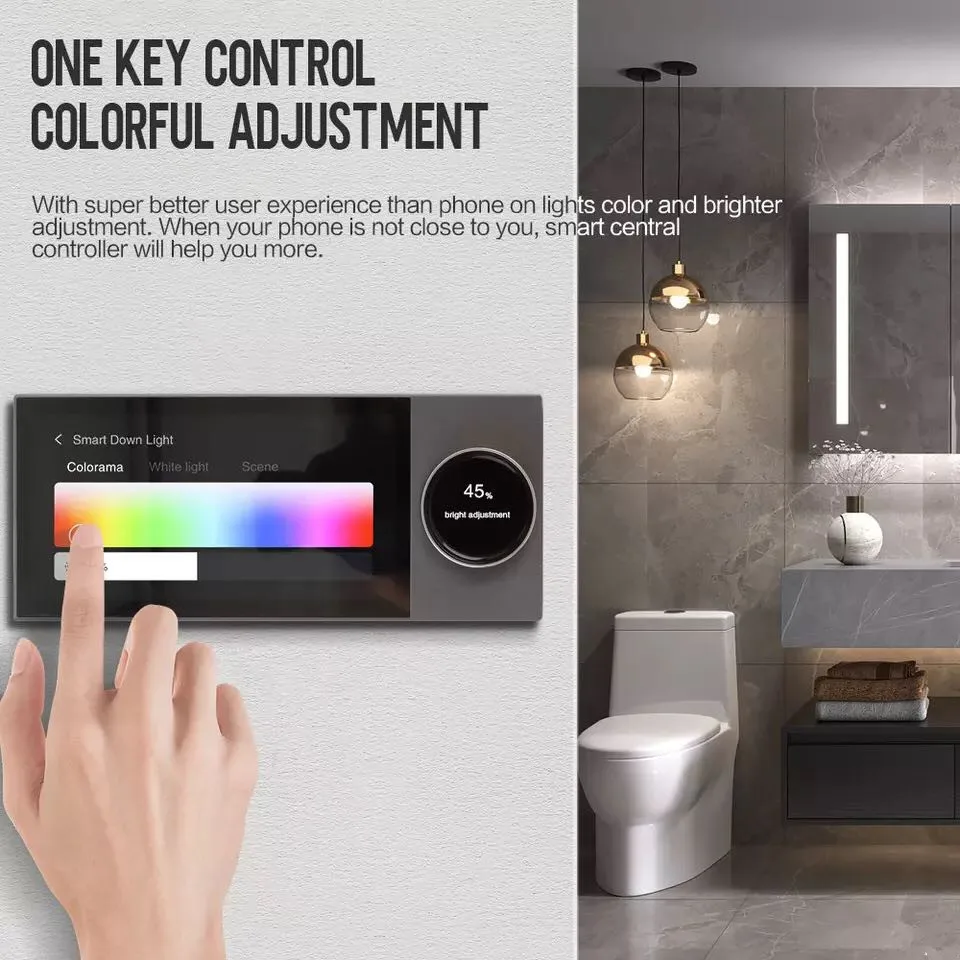

* It can easily realize the precise control of intelligent devices such as lighting, curtains, air conditioners, etc., without hands-on, voice controllable, and compatible with most graffiti ecological devices.
* Customize the linkage scene, touch the panel or wake up by voice, and you can quickly switch the scene mode.
Parameters configuration:
CPU：PX30 quad-core Cortex-A35
Firmware: Android 8.1;RAM:2GB&ROM:8GB
Screen: large screen 6 inches 720*1440 multi-touch/small screen 1.22 inches 240*204 multi-touch
RS485: half-duplex 3.81MM interface terminal
Wired network: 10M/100M adaptive Ethernet
Wireless network: 802.11b/g/n wireless fidelity 150Mbps 2.4GHz
Zigbee:PHY/MAC Zigbee network protocol stack
Supported languages: Chinese, English, Spain
Functions:

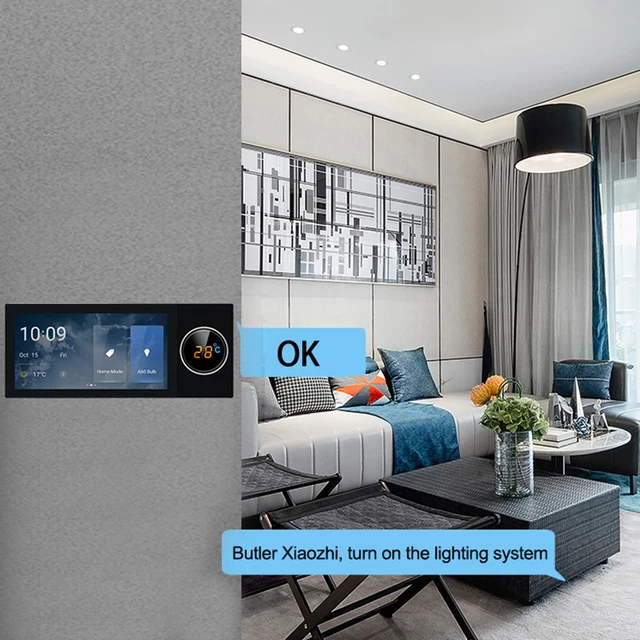

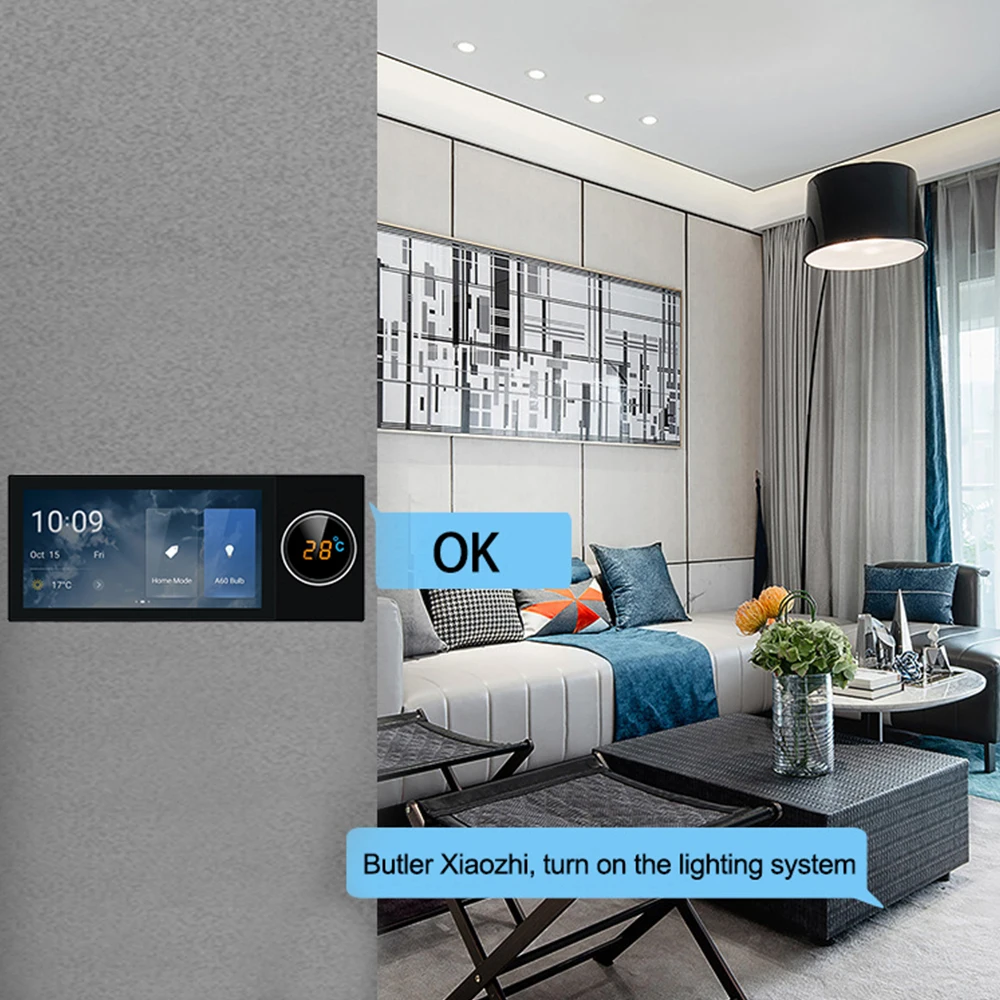

Voice interaction: 5-7M noise reduction wake-up, off-line wake-up, on-line control, "Xiao Zhi Butler" answers questions and answers, 4-channel microphone.
Gateway function:Zigbee gateway capability, which can connect 100+ sub-devices, and multi-category graffiti ecological devices can be controlled at will.
Local switch: supports local 2-way switch, which can be used for room lighting circuit, such as living room lamp, bookcase lamp, etc.

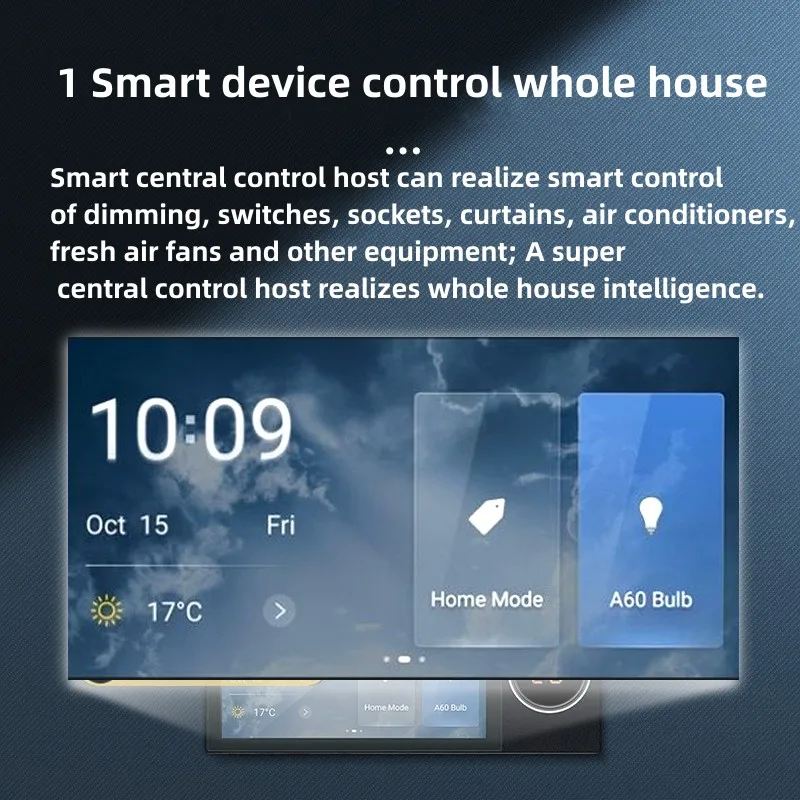

Music playback:Two-channel speaker output, exclusive content service "QQ Music" can be customized, etc. Light sensing: according to the ambient light brightness, automatically adjust the screen brightness, and protect your eyes comfortably.An intelligent central control can control the intelligent switches, sockets, lights, air conditioners, curtains, door locks, security, sensors and other equipment in the room, and easily realize voice control of the whole family.
Note: Please note this is tuya control panel, only works with Tuya smart solution products,before you purchase this control panel,please check below what products are supported and what are not supported;Alexa is not supported, zigbee gateway is available, but Bluetooth gateway is not available
1:Currently the 6inch control panel support below devices :Light Switches , Sockets, plugs, Lighting products, Curtains(not curtain switch), Air Conditioner(not IR remote),Thermostat,fresh air ventilator, door magnetics,temperature and himidity sensors,PIR,gas alarm sensor,water sensors,SOS.Clothes hangers, etc,And its keep updating for more products;
2: Currently doesn't Support:Cameras(video doorbells), IR remote control,Modules(like switch module, dimmer module, curtain module) , Dimmer switch, cutain switch, not built-in Alexa and google assistant;
3: The control panel is latest product, we will update the verion monthly to integrate more products through OTA Upgrade, please contact us first if you have problem for product integration.

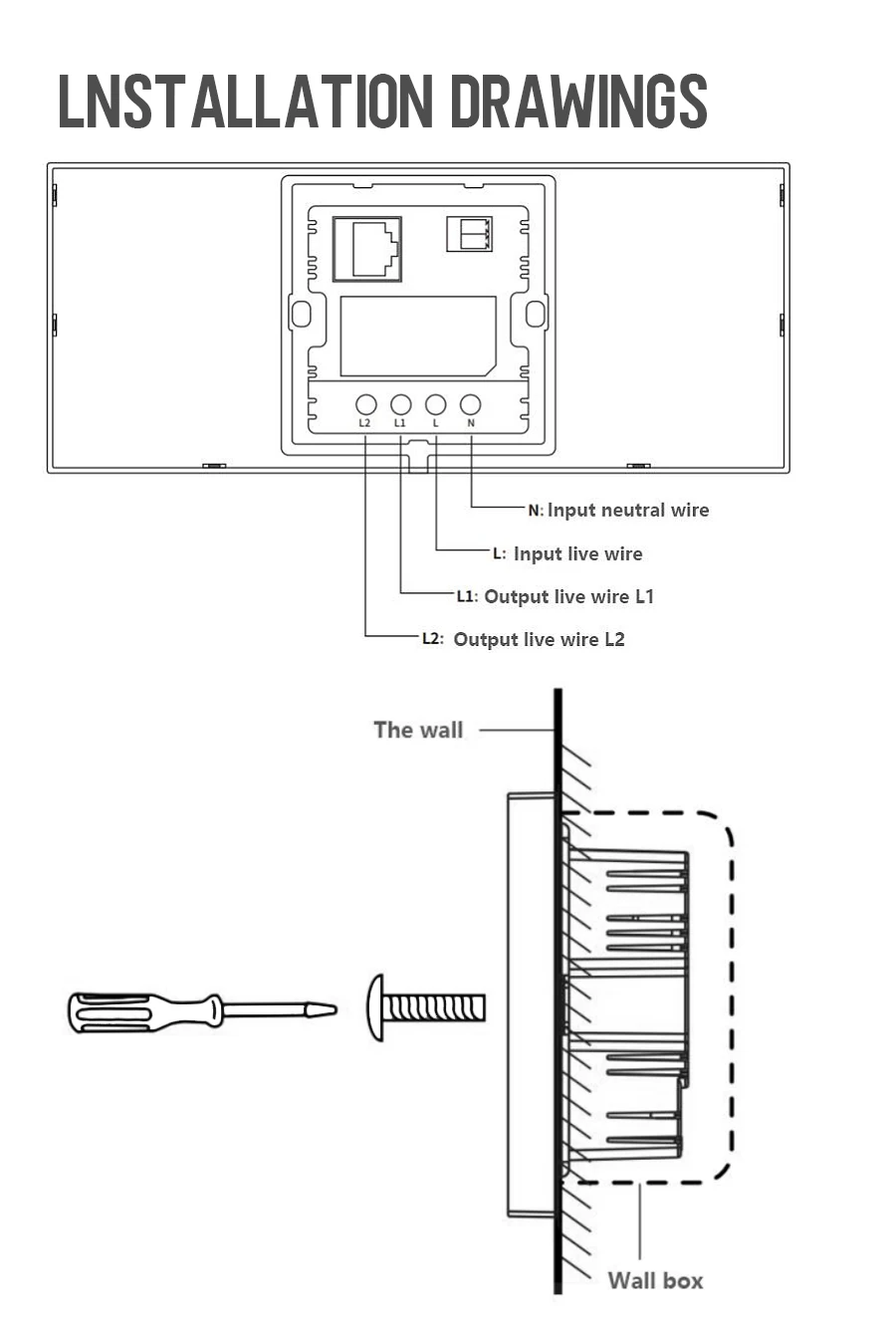

Installation instructions:
Turn off the main power switch, and confirm that the live wire in the cassette is not charged with a measuring pen.
Remove the back seat and install it in the cassette.
Check the wiring to make sure that the copper wire is in good contact with the terminal and there are no exposed wires.
Fix the base into the cassette with mounting screws, and buckle back to the panel.
Pay attention to the installation process screw should not be too tight, so as not to cause deformation or screen, hardware damage. In case of installation problems, do not press hard to force the installation, but first level the wall and check the bracket.
User Manual :
(1) The product will be turned on once you connect it to the power supply. The product will get to the network settings when you start it in the first time. You can also get into the network settings from the select menu by dropping down from the top of the LCD screen.
2.There are two options in the network settings. You can select wireless connection or wired connection. There will be a QR code showing on the screen after the network connection is done.
3. Â Start the Tuya App in your smart phone, select the " +" at top right corner in the App home page, and then select the " scan"at top right corner in the App page. Â Scan the QR code on the screen of the product to add it into the Tuya App. You will find an S8E panel icon in your App.
4.  Get into the product interface in the Tuya App, you will see the gateway and switch icons like  and . Click the switch icon to control 2 local switches (load of each switch for lamps should be no more than 200W.). It means the switch is off when the icon is in grey, and the switch is on when it is in orange.
5. Â Click the gateway icon to add ZigBee sub devices.Make sure the ZigBee sub devices are in the set-up mode. The gateway will search and add the sub devices automatically. You can follow the user manual of the sub devices to make sure it is in set-up mode. (Usually it is long press the power button or the reset button in 5s, then the LED indication light flickering which means it is in the set-up mode.)
(6) Click the finish button on the App after you add the sub device successfully. For example (2 switches panel) as the following.
(7) You could change the name of the sub devices after they are added to the gateway successfully.
(9) You could change the device type by getting into the device interface in the App. It means the switch is off when it is in grey, and the switch is on when it is in green. You could also set up timers(Schedule) for the switches to realize the automation control.
(10) If you want to add your devices faster,click the" +" and then select the "scan "to add corresponding devices manually,finally drop down the list on panel and click "sync" to stay sync with App.
