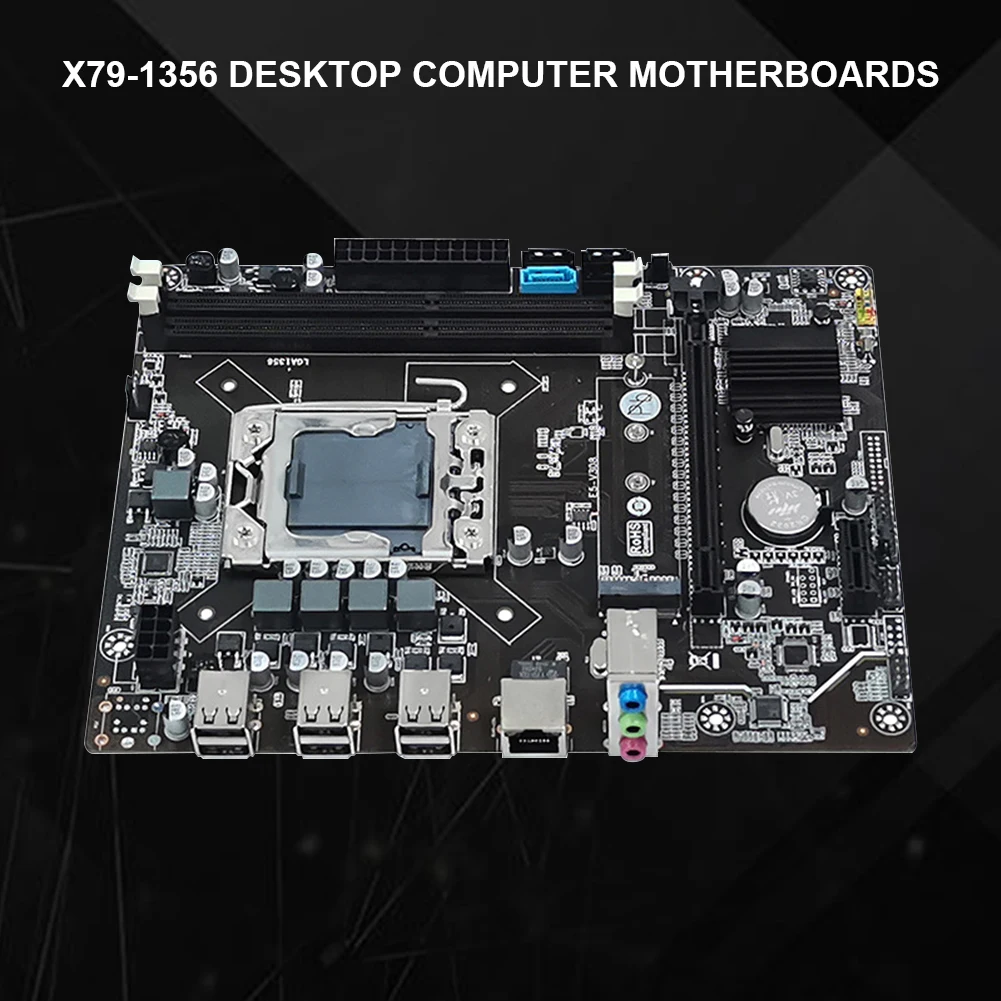

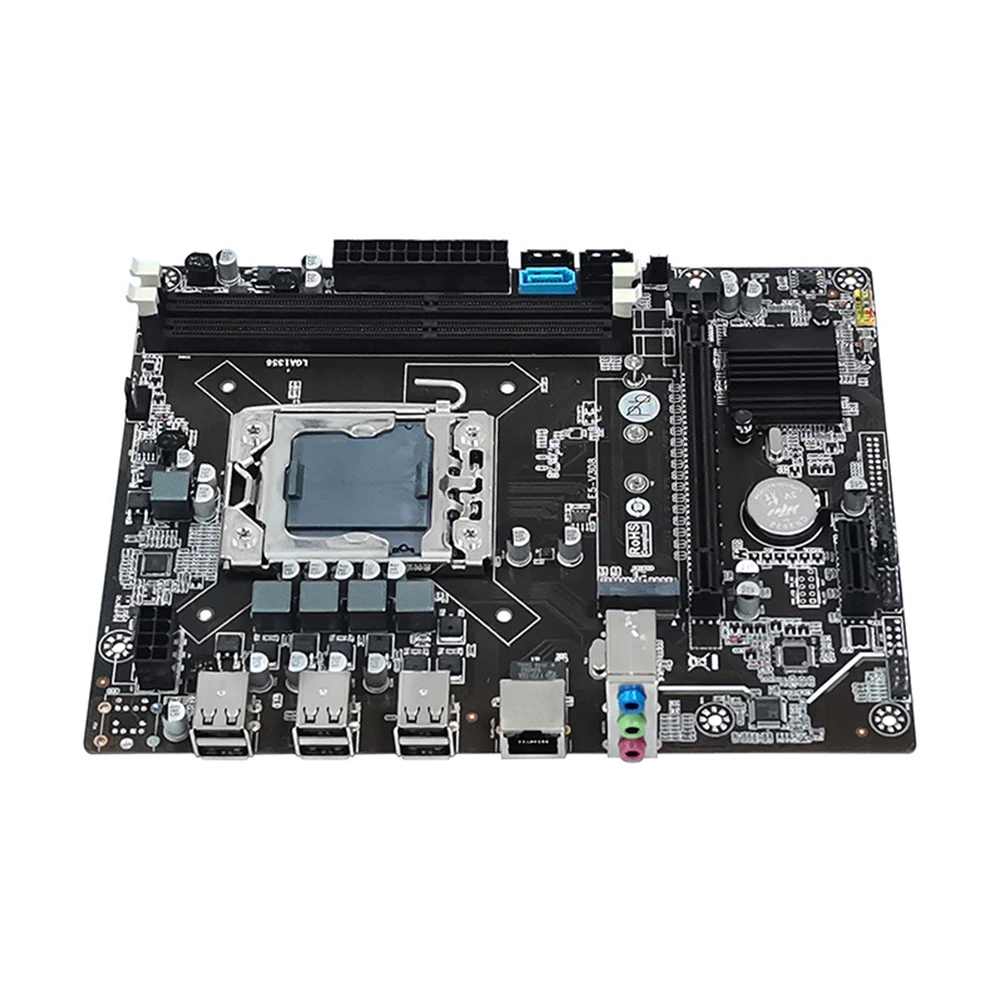

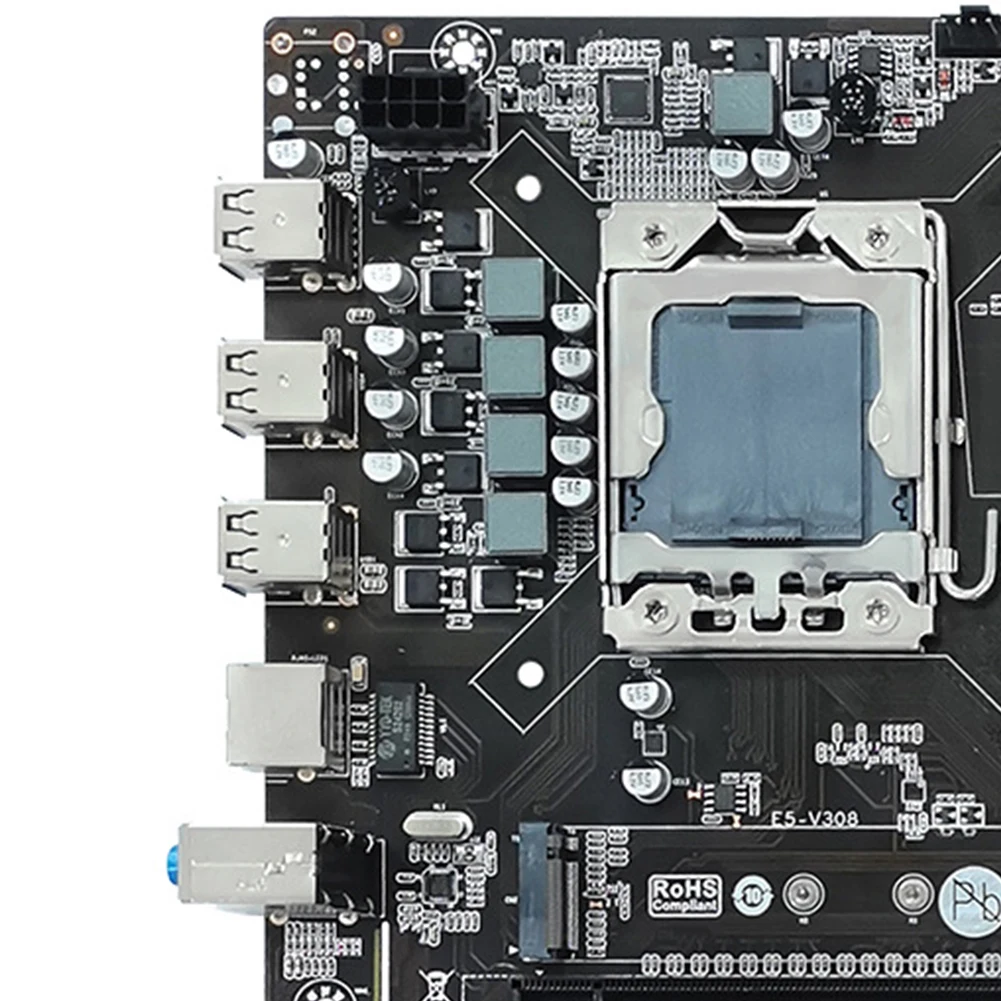

X79 Desktop Motherboard DDR3 Memory LGA 1356 Gaming PC Mainboard Dual Channel Computer Motherboard 2450 CPU SATA2.0/3.0 64GB RAM
Feature:

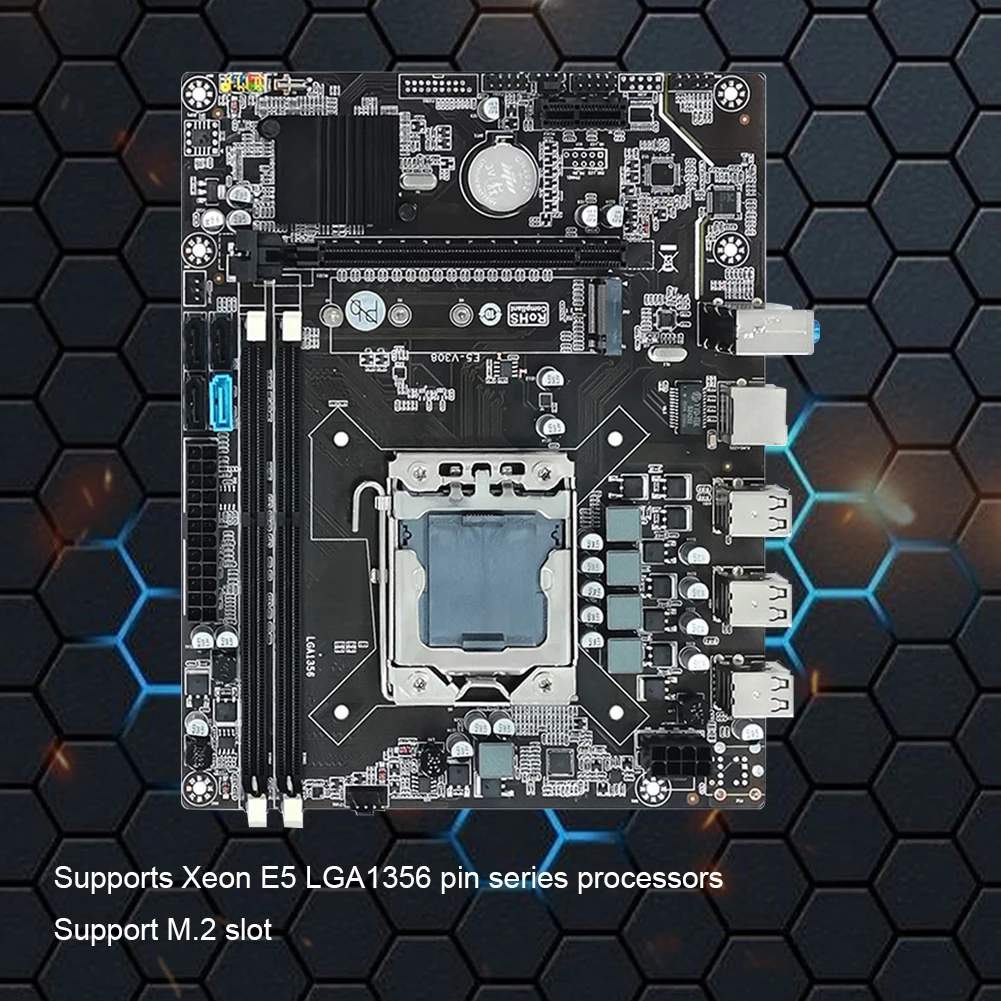

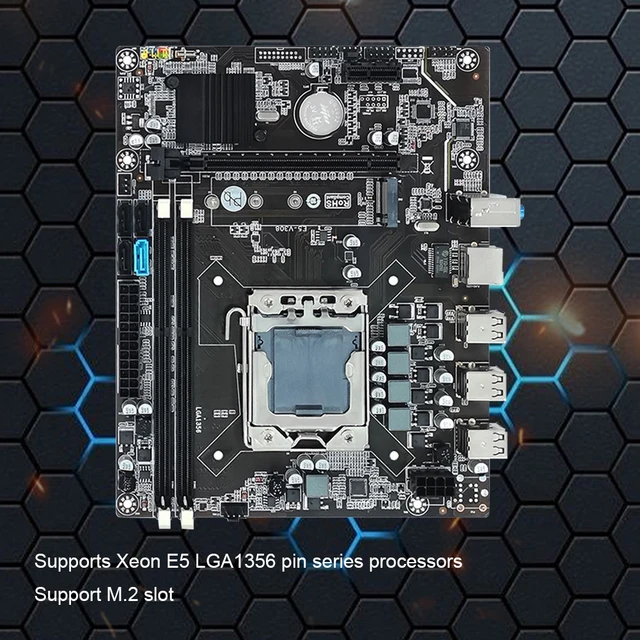

1. Supports Xeon E5 LGA1356 Processor: This motherboard set is specifically designed to support the Xeon E5 LGA1356 socket processor series, providing high-performance capabilities for your computing needs. Experience powerful processing and efficient multitasking with this motherboard.
2. M.2 Slot and Dual-channel DDR3 Memory: The PC motherboard features an M.2 slot, allowing you to take advantage of high-speed storage options for faster data transfer. Additionally, it supports dual-channel DDR3 memory slots, offering flexibility and expandability in memory configurations. Enjoy smooth performance and enhanced system responsiveness.
3. Ample Connectivity Options: With 4 SATA interfaces and 8 USB ports, this desktop motherboard provides ample connectivity options for your storage devices and peripheral devices. Connect your hard drives, SSDs, printers, keyboards, and more with ease. Additionally, it supports PCIe expansion slots x2, enabling you to add expansion cards for enhanced functionality.
4. High-quality Audio: The gaming PC mainboard is equipped with a 5.1-channel ALC897 audio chip, delivering immersive and high-fidelity sound output. It also features a 4-layer PCB bottom board and a 4+1 phase power design, ensuring efficient power delivery and stable performance even during demanding tasks.
5. Wide Compatibility and OS Support: This computer motherboard is compatible with Windows 7 and Windows 10 (32/64-bit) operating systems, providing versatility and compatibility with popular software and applications. Whether you’re a gamer, professional, or casual user, this motherboard offers a reliable and user-friendly experience.
Specification:
Certification: NONE
Origin: Mainland China
Socket Type: LGA 1356
Application: Desktop,Laptop
Chipset: Intel X79
Chipset Manufacturer: Intel
Maximum Ram Capacity: 64 GB
Package: Yes
Number Of Memory Slots: 2
PCI – E standards: PCI – E 3.0
Number of PCIe x 16: 1
Number of PCIe x 1: 1
Number of PCI: 2
Storage Interface Type: SATA 3,SATA 2,M.2 (NVMe)
Number of M.2: 1
Audio Channels: 5.1
Onboard LAN: 1x RJ45
Support USB Type: USB 2.0
Back I/O Ports: COM
Special Function: NONE
Usage Scenario: Household
Processor compatibility: Intel Pentium
RAID Supported: no
Product Size: 216.00×171.00×20.00mm/8.5×6.73×0.79inch
Processor: Xeon E5 LGA 1356 pin series processor
Southbridge: HM70 Chipset Series
Technology: Dual Channel DDR3 1066/1333/1600/1866MHz
Memory Slots: 2 x 240PiN DDR3 DIMM slots
Ethernet: 1x Realtek kernel card
Audio: 1 audio interface (MIC-IN,LINE-OUT.LINE-I0N)
USB ports:6 USB2.0 ports
USB port: 2 (one FUSB can be adapted out of two USB2.0 ports)
SATA port: 4 SATA ports (3 SATA2.0, 1 SATA3.0)
ATXPIR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 x 2X5 PIN Pin
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
